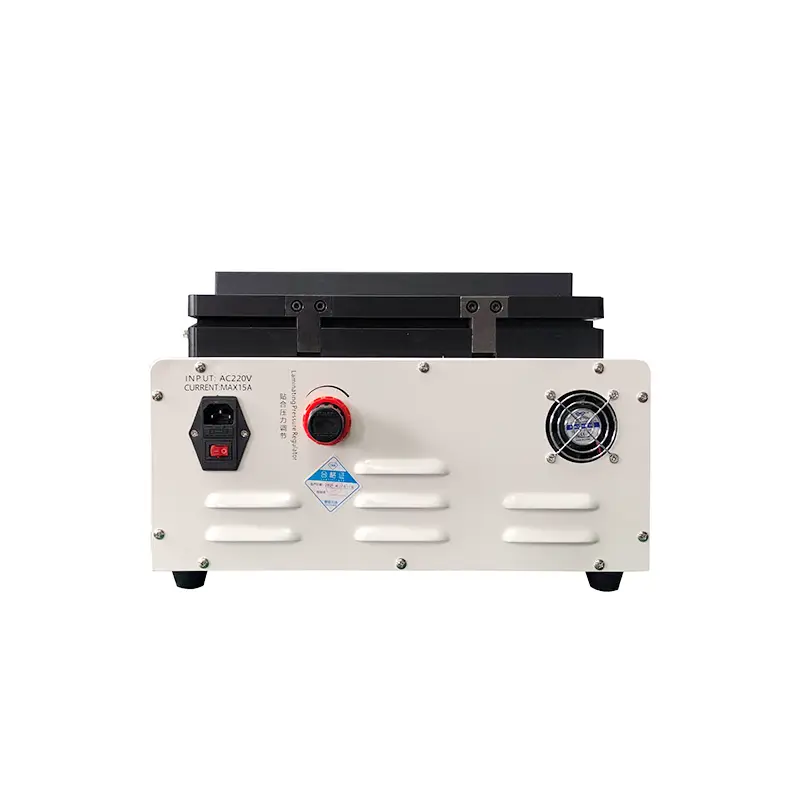

TBK 808 Automatic OCA Lamination & Bubble Removal Machine (12-Inch) 1

TBK 808 Automatic OCA Lamination & Bubble Removal Machine (12-Inch) 2

TBK 808 Automatic OCA Lamination & Bubble Removal Machine (12-Inch) 3

TBK 808 Automatic OCA Lamination & Bubble Removal Machine (12-Inch) 4

TBK 808 Automatic OCA Lamination & Bubble Removal Machine (12-Inch) 5

TBK 808 Automatic OCA Lamination & Bubble Removal Machine (12-Inch)

Applicable industries:

Mobile phone repair shop,mobile phone repair factory, mobile phone repair training center

Weight (KG):

30 KG

Core components:

Brand vacuum pump

Warranty:

1 Year

After-sales service:

1-Year Warranty, Lifetime Support

Technical Support:

1-on-1 Expert Service, Full Video Library

Machinery test report:

Provided

Video outgoing-inspection:

Provided

Place of origin:

Shenzhen, China

Inquiry

Write a Review

Description

Features

Specifications

FAQs

The TBK-808 is a compact and efficient machine designed for professional screen refurbishment. It combines lamination and bubble removal into a single, automated process, making it an ideal solution for repair shops looking to streamline their workflow and improve the quality of their screen assemblies.

All-in-One Design: Features a built-in air compressor and vacuum pump, eliminating the need for any external equipment.
Fully Automatic Operation: With a one-key start function, the machine automatically handles the entire workflow: door locking, vacuuming, laminating, and bubble removal.
Intuitive Touch Screen: A clear touch panel allows for easy and precise control over process parameters like time and temperature.
Wide Compatibility: The spacious chamber can accommodate screens up to 12 inches, making it suitable for a wide range of smartphones and tablets.
High-Performance Results: Engineered for a quiet, oil-free operation that consistently delivers a smooth, bubble-free finish on screen assemblies.
Durable and Certified: Built with high-quality, durable components and is CE certified, ensuring reliability and adherence to safety standards.

Specification	Detail
Brand	TBK
Model	TBK-808
Function	Laminating & Bubble Removing (2-in-1)
Voltage	AC 220V ±10% / 50Hz
Power	800W
Max Screen Size	12 inches
Machine Dimensions	400mm x 350mm x 250mm
Net Weight	30 KG
Package Dimensions	490mm x 470mm x 425mm
Gross Weight	42 KG

Do I need to buy an external air compressor or vacuum pump?

No, you do not. The TBK-808 is an all-in-one unit with both a compressor and vacuum pump built-in. You just need to plug it into a power source to start working.

What is the maximum screen size this machine can handle?

The machine is designed to handle screens up to 12 inches, which covers virtually all smartphones and most common tablet models.

Is this machine difficult to operate for a beginner?

No, it is designed for ease of use. The process is almost fully automatic with its one-key start function. You simply place the screen assembly inside, close the door, and start the cycle via the touch screen.

How well does it perform as an oca bubble remover machine?

The TBK-808 is highly effective. Its integrated system transitions automatically from the lamination phase to a high-pressure bubble removal cycle. This process is specifically designed to remove all air bubbles from under the OCA film, ensuring a flawless, factory-quality finish.

What is the operating voltage?

The machine runs on 220V power. If your region's standard is 110V, you will need to use a compatible step-up power transformer.

How is the machine shipped to ensure it arrives safely?

The machine is shipped in a custom, steel-strip reinforced wooden case with internal foam padding to protect it from any damage during transit.
