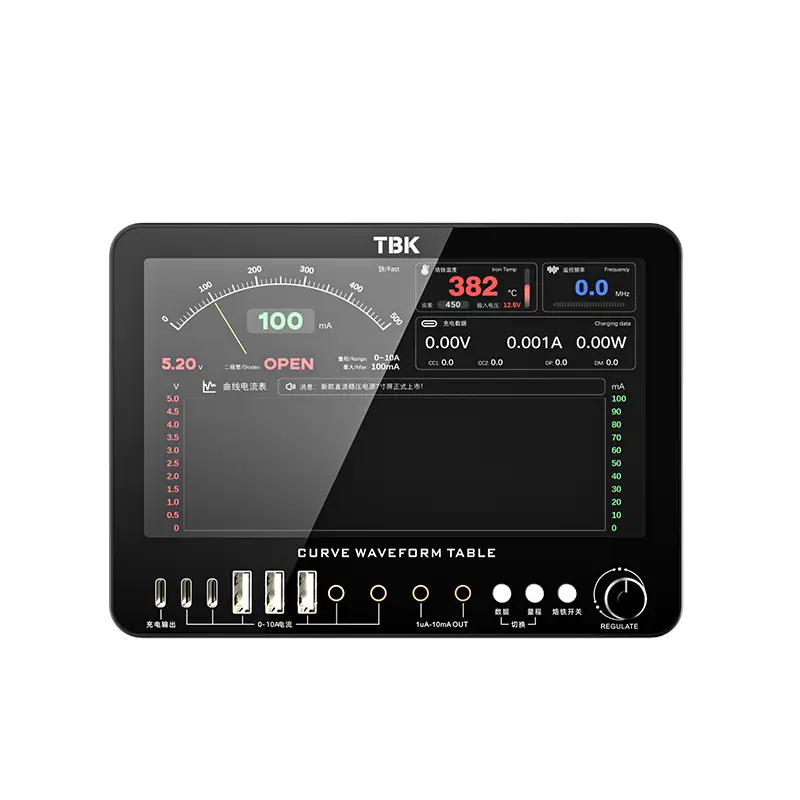

TBK-D7 Curve Waveform Meter: DC Power Supply, Soldering & Diagnostic Tool

Discover the TBK-D7, an all-in-one desktop tool for electronics diagnostics and repair. This device combines several essential functions into one compact unit, serving as a powerful Multifunctional Curve Waveform Meter designed for technicians, repair shops, and hobbyists.

It features a large, clear screen that displays both digital meter readings and a real-time curve graph, allowing you to visually analyze power consumption and device behavior.

• Multi-Range Current Output: Easily switch between different current ranges, including a high-precision 1uA-10mA output for delicate components and a powerful 0-10A output for general power needs.

• Dual Display: View data simultaneously as large numerical readouts and as a "Curve Waveform Table" to track changes over time.

• Integrated Soldering Function: Connect an electric soldering iron and monitor the temperature in real-time, with a maximum temperature of 480°C.

• Component Measurement: Perform high-precision measurements, such as testing diode values, to quickly diagnose faulty components.

• Board Startup Analysis: Test and record the startup data of devices like mobile phone motherboards to identify power-on issues.

• Charging Data Analysis: Monitor the charging data of devices like smartphones in real-time, displaying voltage, current, and wattage.

• Broad Application: Ideal for repairing and monitoring data from a wide variety of electronic products, from car keys to motherboards.

• Model: TBK-D7

• Power Supply: DC 5V/2A or 12V/5A

• Voltage Input and Output: 0–40V

• Current Output: 0–10A

• Soldering Iron Temperature: 480°C

• Product Dimensions: 180mm x 130mm x 20mm

• Product Net Weight: 500g

• Packing Dimensions: 250mm x 180mm x 110mm

• Packing Weight: 750g
