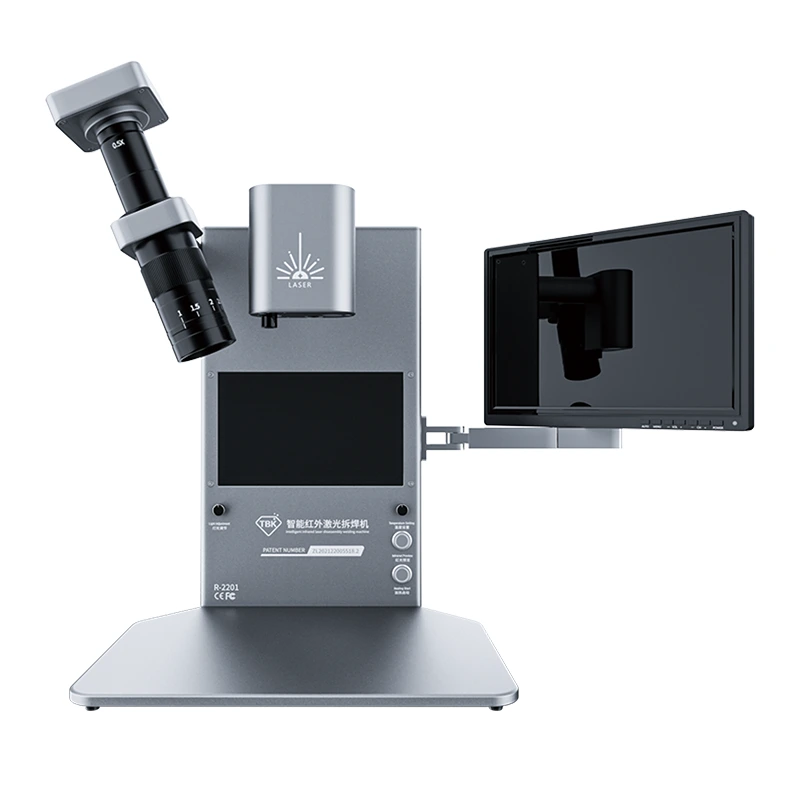

TBK R-2201: 3-in-1 Laser Soldering Machine with Thermal Camera & 4K Microscope

The TBK R-2201 is an advanced Laser Soldering Machine engineered for high-precision electronics repair. It utilizes a powerful laser for non-contact heating, allowing for extremely accurate soldering and desoldering of delicate components. To enhance its core function, this machine is integrated with a thermal imaging camera for pre-repair diagnostics and a 4K HD microscope for a crystal-clear, magnified view of the workspace. Featuring an adjustable heating spot, precise temperature control, and an efficient dual-display interface, this Laser Soldering Machine provides a complete and powerful solution for complex motherboard and micro-component repairs.

• Precise Laser Soldering System:

  • Utilizes non-contact laser heating, concentrating heat precisely to avoid damaging surrounding components.

  • The heating spot size and temperature ($100-450$°C) are fully adjustable to suit a wide variety of delicate soldering tasks.

• Infrared Thermal Imaging Diagnostics:

  • An integrated thermal camera quickly and accurately pinpoints faults on motherboards, such as short circuits and current leaks, significantly improving diagnostic efficiency.

• 4K Ultra-HD Microscope:

  • Equipped with a 48-megapixel industrial-grade CCD camera that supports 4K/60FPS ultra-high-definition video output for a smooth and clear image.

  • Offers high-magnification continuous zoom, making the smallest components and details clearly visible.

• Dual-Screen Display for Enhanced Workflow:

  • Features a 7-inch built-in control screen and a 10-inch external HD display.

  • Allows for simultaneous viewing of the thermal diagnostic image and the live microscope feed, enabling you to diagnose and operate at the same time.

• Integrated and User-Friendly Design:

  • Combines diagnostics, soldering/desoldering, and inspection into a single, compact workstation.

  • Includes a foot switch for hands-free operation, allowing you to focus both hands on your precision work safely and conveniently.

  • The body is constructed from durable and lightweight aviation-grade aluminum alloy.

Brand, TBK

Model, R-2201

Name, Intelligent infrared laser welding machine

Laser Power, 55W

Total Power, 100W

Voltage, 110-220V

Temperature Range, 100-450°C

Display, 7 inches (built-in)

External Display, 10 inches

Microscope, 4K HD CCD

Pixel, 48 Million

Frame Rate, 60 frames / S

Magnification, 21-135x / 42-270x

Output Mode, HDMI

Net Weight, 6.2KG

Product Size, 290 * 290 * 340MM
