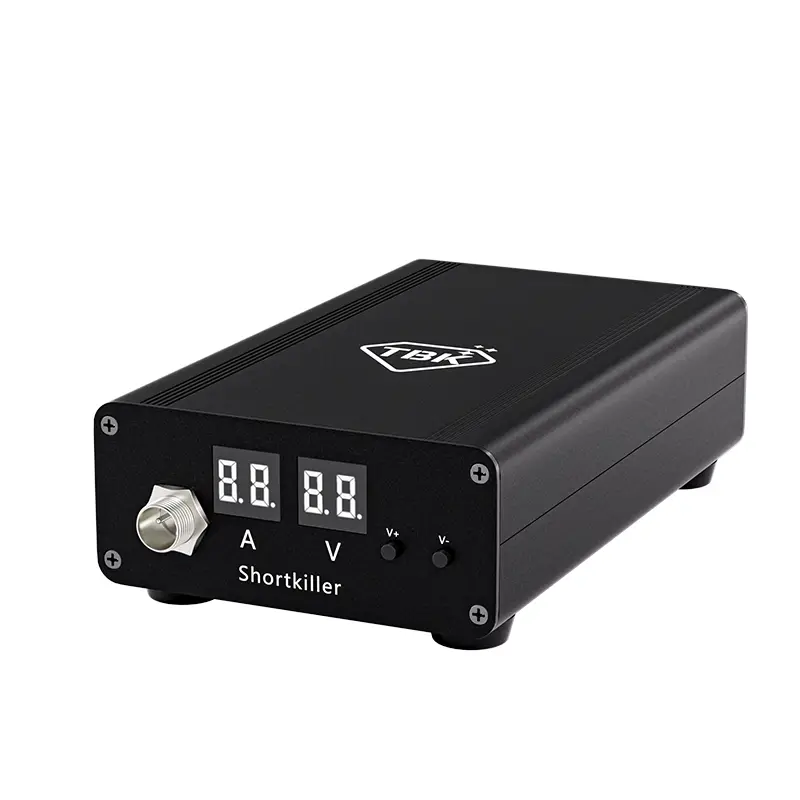

TBK Short Killer | Professional Short Circuit Detector & Repair Tool for PCB Motherboard Fault Finding 1

TBK Short Killer | Professional Short Circuit Detector & Repair Tool for PCB Motherboard Fault Finding 2

TBK Short Killer | Professional Short Circuit Detector & Repair Tool for PCB Motherboard Fault Finding

Inquiry

Write a Review

Description

Features

Specifications

FAQs

Tired of wasting hours hunting for one tiny short on a complex motherboard? When guesswork fails and time is money, you need a more powerful tool on your bench.

The TBK Short Killer is a professional-grade short circuit detector engineered for top-tier repair technicians. It's designed to transform your workflow, turning hours of frustrating searching into a few seconds of precision fault-finding.

How Does It Work?

When a device is dead due to a short circuit, the TBK Short Killer safely injects a controlled, high current into the board. Based on Ohm's Law ( $V = I R$ ), this powerful current naturally flows to the point of least resistance—the short circuit—forcing the faulty component to instantly heat up. No matter how small or hidden the component is, the heat will give away its exact location.

Why Choose the TBK Short Killer?

[Pinpoint Accuracy in Seconds]: Stop hunting and start fixing. The powerful current goes directly to the fault, causing it to heat up instantly. Whether you use the rosin method to see the smoke or a thermal camera to spot the glow, you'll lock onto the target in seconds, dramatically increasing your repair success rate.
[Real-Time Digital Display]: Take full control of your repair. The bright, clear digital screen gives you a live reading of both voltage and current, so every action you take is precise, safe, and easily monitored.
[Efficient & Safe Output]: Power where you need it, safety where it counts. By starting with a low voltage, you can safely diagnose and burn out the short while providing maximum protection to other sensitive components on the motherboard. It's the most reliable partner for any serious board-level repair.
[The Professional's Must-Have Tool]: Once you've located the faulty component, you can quickly replace it to completely resolve the short and bring the device back to life.

Boost your efficiency, slash your diagnostic time, and increase your profitability on every job. Add the TBK Short Killer to your toolkit and become the go-to expert for the toughest repairs.

How to Use It (General Steps)

The provided text outlines a general procedure for using the tool:

Confirm the Short: First, use a multimeter in continuity mode to confirm that a short circuit exists on the board (e.g., across the battery terminals).
Connect to Ground: Clamp the black negative alligator clip to a ground point on the motherboard, such as a metal shield or a ground pad.
Set Voltage: Start by setting a low voltage on the Short Killer, for example, 1V. This is a safety precaution to avoid damaging other components.
Inject Voltage: Touch the red positive probe to the circuit line where the short is suspected (e.g., the positive battery terminal or a power rail).
Locate the Fault: When the probe touches the shorted line, the device will inject a high current, and the faulty component will heat up instantly. Use a method like applying rosin to visually pinpoint the exact component. The device may also give an audible alert.
Repair: Once the component is found, de-solder and remove it from the board to clear the short.

Important Note: This is a professional tool. Using it incorrectly by applying excessive voltage or connecting it to the wrong points can cause permanent damage to the circuit board.

Function: Short circuit fault detection and removal.
Display: Dual digital LED displays for real-time voltage (V) and current (A).
Output: Capable of delivering high current (up to 30A, as mentioned in one image) to burn out the short.
Application: Suitable for various PCBs, including mobile phone and computer motherboards.
Build: Features a durable aluminum alloy casing.

Product Name: Short Circuit Killer
Brand: TBK
Product Dimensions: 165 x 85 x 44 mm
Product Weight: 480 g
Package Dimensions: 205 x 132 x 70 mm
Package Weight: 610 g

What is the primary purpose of this tool?

This is a professional tool for electronics repair, designed to quickly locate and burn out short circuits on a motherboard. A short circuit can prevent a device from powering on or cause it to malfunction. This tool injects a high current into the shorted line, causing the faulty component (often a capacitor) to heat up instantly. This allows a technician to pinpoint its exact location, remove it, and complete the repair.

Are there risks involved? Could this tool damage the motherboard?

Yes, there are risks. This is a tool for professionals with knowledge of electronic circuits. Setting the voltage too high or probing the wrong location can escalate the damage and destroy sensitive components like the CPU. Safety Recommendations: Start with Low Voltage: Always begin testing with a low voltage setting, such as 1V. Confirm the Shorted Line: First, use a multimeter to confirm which circuit line is shorted (e.g., the main power rail, VCC_MAIN) before injecting current. Use Quick Taps: Do not hold the probe against the board for an extended period. Use brief, quick "taps" to apply current and observe the result.

How should I set the voltage?

The correct voltage setting depends on the circuit you are testing. Battery Connector Line: A mobile phone's battery voltage is typically 3.7V-4.2V. You can start testing at 1V-1.5V and slowly increase if there is no result, but it is best not to exceed the line's normal operating voltage. Secondary Power Rails: These circuits often operate at lower voltages (e.g., 0.8V, 1.1V, 1.8V). Extreme caution is needed here; always start with a voltage lower than the line's rated value. Rule of Thumb: Always use the lowest possible voltage that is sufficient to cause the faulty component to heat up, thereby protecting the rest of the components on the board.

What is the "rosin method" mentioned in the instructions?

The "rosin method" is a highly effective technique to help locate a short. Solid rosin is heated, and its smoke is used to coat a section of the motherboard with a thin white film. When you apply current with the Short Killer, the shorted component will instantly get hot and melt the rosin on its surface, turning it from white back to a clear or wet appearance. This makes the faulty part immediately visible and allows for pinpoint accuracy. It is often more precise and economical than using a thermal camera or just trying to feel for the heat.

Can I use this tool for devices other than mobile phones?

Yes. In theory, it can be used to troubleshoot short circuits on any low-voltage DC circuit board, including: Laptop motherboards Tablets Drones Other consumer electronics

What should I do if the tool shows a high current draw, but I can't find a hot spot on the board?

This can happen for a few reasons: Large Shorted Component: A larger IC or component might be shorted internally, causing heat to distribute over a wider area, making it harder to detect. Internal PCB Layer Short: The short circuit may be in an inner layer of the PCB, preventing the heat from reaching the surface effectively. Ground Plain Short: A short on a large ground plane can cause the current to dissipate quickly, making a single hot spot difficult to find. Troubleshooting Tips: Try the "rosin method" again on a wider area. Alternatively, you can use freeze spray; after spraying the board, apply current, and the spot where the frost melts first is the location of the short. If you still cannot find the fault, more advanced circuit analysis may be required.
